Applications :

• These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

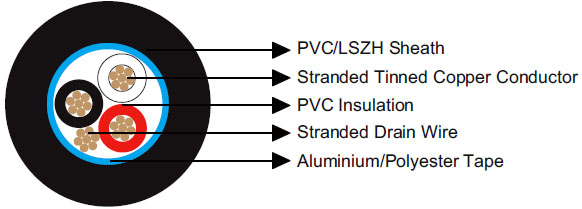

Construction :

• Conductor	Tinned copper wire.
  Insulation	PVC.
  Overall Screen:	Aluminium/Polyester tape.
  Drain Wire:	Stranded tinned copper, 7x0.20.
  Sheath:	PVC (V type)/LSZH (H type).
  Insulation Colour:	Black, White, Red.

Electrical & Mechanical Characteristics :

• AWG		24
  Conductor Construction		7x0.20
  UL Style		2464
  Maximum Conductor Resistance	Ω/km	85
  Voltage Rating	V	300
  Nominal Capacitance Conductor to Conductor	pF/m	108
  Nominal Capacitance Conductor to Screen	pF/m	213
  Bending Radius		10xOverall Diameter
  Operating Temperature	℃	-30~80

Dimensions :

• Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
  		mm	mm	mm
  BE119533V	3	0.25	0.81	4.1
  BE119533H	3	0.25	0.81	4.1
