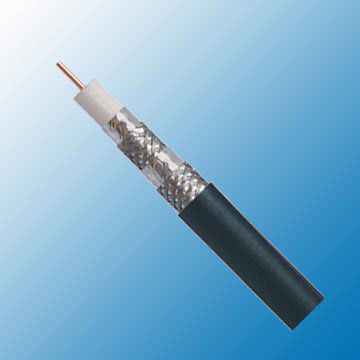

RG 6 Quad Shield



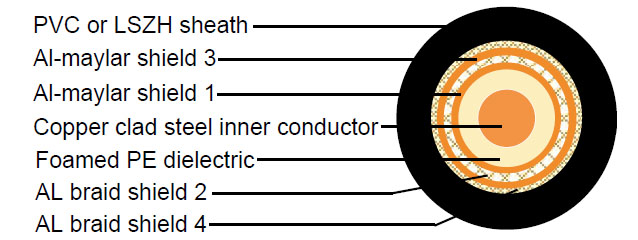

Construction :

  • Inner conductor Copper clad steel(CCS) Φ1.02 mm
    Dielectric Foam PE Φ4.60 ± 0.20 mm
    Tape shield(shield 1) Al-maylar ≥25%
    Braid shield(shield 2) Aluminium 80 x 0.12mm
    Shield coverage   ≥60%
    Tape shield(shield 3) Al-maylar ≥25%
    Braid shieldr(shield 4) Aluminium 64 x 0.12 mm
    Shield coverage   ≥40%
    Sheath PVC or LSZH Φ7.55 ± 0.20 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 54 pF/m
    Velocity of propagation 82%
    Insulation resistance >5000 Mohm.Km
    Conductor resistance < 24.1 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Cable weight (approx.) 59.8 Kg/Km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 4.8 1.5
    100 6.7 2.0
    200 9.3 2.8
    500 15.0 4.6
    600 16.9 5.1
    800 19.4 5.9
    1000 21.6 6.6
    1350 24.2 7.4
    1750 28.0 8.4
    2150 31.5 9.6
    2400 32.8 10.0
    3000 37.9 11.5
