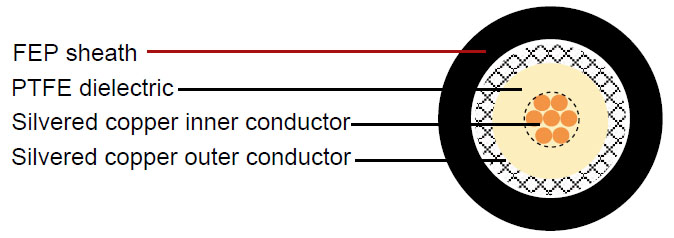

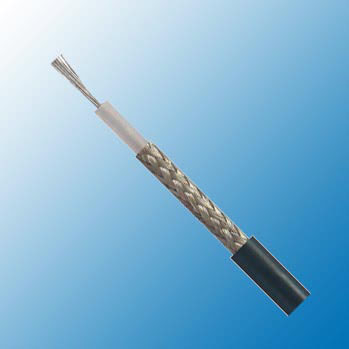

Construction :

• Inner conductor	Silver plated copper	7 x 0.10 mm
  Dielectric	PTFE	Φ0.84 mm
  Outer conductor	Silver plated copper	0.10 mm
  Shield coverage		95%
  Sheath	FEP	Φ1.75 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	94 pF/m
  Velocity of propagation	70%
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Operating temperature range	-55°C - +200 °C
  Cable weight (approx.)	7.8 kg/km

Attenuation :

• Frequency (MHz)	Attenuation (dB/100 m)	Max. Attenuation(dB/100ft)
  100	46	14.0
  200	65	19.8
  400	93	28.3
  900	140	42.7
  1200	162	49.4
  1500	182	55.5
  1800	200	61.0
  2000	211	64.3
  2500	236	71.9
