BS5308 Cable Part 1 Type1 XLPE-IS-OS-LSOH



Applications :

  • The unarmoured LSOH versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSOH sheath can reduce toxic smoke and fume emission.

Construction :

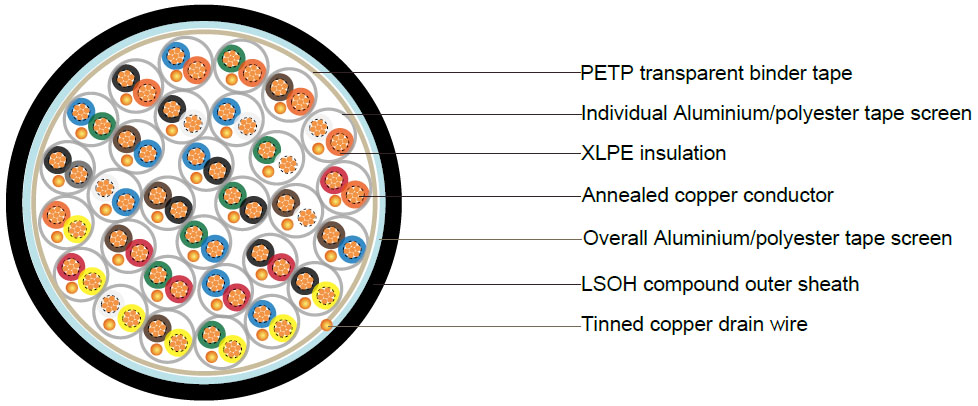

  • Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5),0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
    Insulation XLPE (Cross Linked Polyethylene), or PE (optional)
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contac twith tinned
    copper drain wire, 0.5mm²
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down incontact with
    tinned copper drain wire, 0.5mm²
    Outer sheath LSOH(Low Smoke Zero Halogen) sheath
    Flame retardant to IEC60332-3-22
    Fire resistant to IEC60331
    Halogen free to IEC60754-1
    Low smoke emission to IEC61034-1-2
    Sheath colour Black or blue
  •

Mechanical and Electrical Properties :

  • Operating temperature : -20˚C up to + 90˚C( fixed installation) ; 0˚C to +50˚C(during operation ).
  • Minimum bending radius : 5 x overall diameter.
  • Conductor Area Size mm2 0.5 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
    Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
    Insulation resistance min Gohm/km 5 5 5 5 5
    Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115 115
    Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75 75
    Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000 1000
    Core to screen V 1000 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500 300/500

Parameter :

  • No.of
    Pairs    		 No.and Dia.
    of Wires    		 Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness
    of Sheath    		 Nominal Dia.
    of Cable    		 Approx.Weight
    no./mm mm2 mm mm mm kg/km
    2 1/0.8 0.5 0.5 0.9 9.7 95
    5 1/0.8 0.5 0.5 1.2 13 180
    10 1/0.8 0.5 0.5 1.2 16.9 310
    15 1/0.8 0.5 0.5 1.3 19.7 440
    20 1/0.8 0.5 0.5 1.3 22.3 560
    30 1/0.8 0.5 0.5 1.5 27.1 820
    50 1/0.8 0.5 0.5 2 35 1370
    2 16/0.2 0.5 0.6 1.1 11.2 110
    5 16/0.2 0.5 0.6 1.2 14.5 250
    10 16/0.2 0.5 0.6 1.3 19.3 480
    15 16/0.2 0.5 0.6 1.5 22.6 570
    20 16/0.2 0.5 0.6 1.5 25.7 780
    30 16/0.2 0.5 0.6 1.7 31 1020
    50 16/0.2 0.5 0.6 2.2 39.9 1680
    2 1/1.13 1 0.6 1.1 11.9 200
    5 1/1.13 1 0.6 1.2 15.4 290
    10 1/1.13 1 0.6 1.3 20.5 580
    15 1/1.13 1 0.6 1.5 24.1 780
    20 1/1.13 1 0.6 1.7 27.7 1010
    30 1/1.13 1 0.6 2 33.7 1430
    50 1/1.13 1 0.6 2.2 42.5 2360
    2 7/0.53 1.5 0.6 1.2 13.6 250
    5 7/0.53 1.5 0.6 1.3 17.7 460
    10 7/0.53 1.5 0.6 1.5 23.9 760
    15 7/0.53 1.5 0.6 1.7 28 1020
    20 7/0.53 1.5 0.6 2 31.7 1350
    30 7/0.53 1.5 0.6 2.2 38.6 1900
    50 7/0.53 1.5 0.6 2.2 48.9 3060
