BS5308 Cable Part 1 Type 2 MG-XLPE-IS-OS-SWA-LSOH



Applications :

  • The armoured fire resistant versions (Part 1Type 2) are typically used in chemical and process industries where there is danger of fire. The galvanised steel wire armour provides excellent protection.

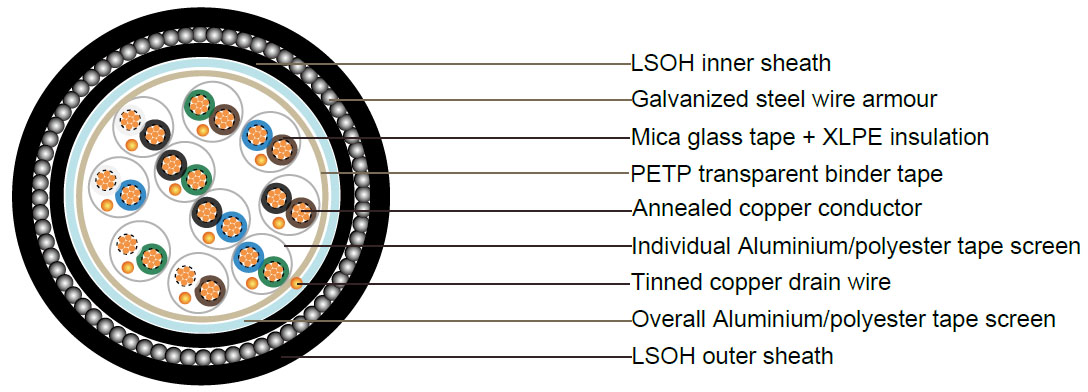

Construction :

  • Conductor Annealed or tinned copper, Class 2
    Insulation Mica glass tape, XLPE (Cross Linked Polyethylene), or PE (optional)
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
    tinned copper drain wire, 0.5mm²
    Inner Sheath LSOH(Low Smoke Zero Halogen) sheath
    Amour Galvanized steel wire armour
    Outer sheath LSOH(Low Smoke Zero Halogen) sheath
    Flame retardant to IEC60332-3-22
    Fire resistant to IEC60331
    Halogen free to IEC60754-1
    Low smoke emission to IEC61034-1-2
    Sheath colour Black or blue
  •

Mechanical and Electrical Properties :

  • Operating temperature : -20˚C up to + 90˚C( fixed installation) ; 0˚C to +50˚C(during operation ).
  • Minimum bending radius : 6 x overall diameter.
  • Conductor Area Size mm2 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 7 x 0.3 7 x 0.37 7 x 0.44 7 x 0.53
    Conductor resistance max ohm/km 36 24.5 18.1 12.1
    Insulation resistance min Gohm/km 5 5 5 5
    Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1 kHz for Non OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115
    Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75
    Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000
    Core to screen V 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500

Parameter :

  • No.of Pairs No.and Dia. of Wires Nominal Conductor Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm2 mm mm mm mm mm mm kg/km
    5 7/0.37 0.75 0.6 0.8 15.0 0.9 1.4 20.3 870
    10 7/0.37 0.75 0.6 0.8 19.8 0.9 1.4 25.9 1480
    5 7/0.44 1 0.6 0.8 14.8 0.9 1.4 20.0 890
