Type 209 1.1 to 11KV



Applications :

  • Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

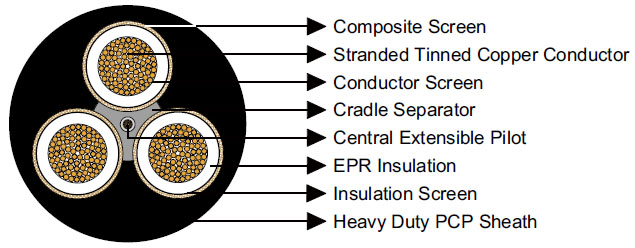

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
    Cradle Separator Semiconductive PCP.
    1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    6 84/0.30 1.5 7/0.25 7.2 24/0.20 0.8 3.8 30.0 129
    10 77/0.40 1.5 7/0.25 8.6 24/0.20 0.8 3.8 32.6 157
    16 126/0.40 1.6 7/0.25 9.6 24/0.20 0.8 4.0 35.8 197
    25 209/0.40 1.6 7/0.25 11.3 24/0.20 0.8 4.3 39.7 255
    35 285/0.40 1.6 7/0.25 12.4 24/0.20 0.8 4.6 43.1 312
    50 380/0.40 1.7 7/0.25 14.1 40/0.20 0.8 5.0 47.7 386
    70 203/0.67 1.8 7/0.25 16.5 40/0.20 0.8 5.4 52.8 503
    95 259/0.67 2.0 7/0.25 18.2 40/0.20 0.8 6.0 58.6 605
    120 336/0.67 2.1 7/0.25 20.3 40/0.20 0.8 6.4 64.4 741
    150 427/0.67 2.3 7/0.25 22.3 40/0.20 0.8 6.9 70.2 896
    185 518/0.67 2.5 7/0.30 30.2 40/0.20 0.8 7.4 77.4 1092
    240 672/0.67 2.8 7/0.30 33.6 40/0.20 0.8 8.2 86.0 1365
    300 854/0.67 3.0 7/0.40 50.1 40/0.20 0.8 8.8 95.1 1715
    Type 209.3
    16 126/0.40 3.0 7/0.25 13.1 24/0.20 0.8 5.3 46.2 301
    25 209/0.40 3.0 7/0.25 14.8 24/0.20 0.8 5.6 50.1 369
    35 285/0.40 3.0 7/0.25 15.8 24/0.20 0.8 5.9 53.5 431
    50 380/0.40 3.0 7/0.25 17.2 40/0.20 0.8 6.3 57.6 507
    70 203/0.67 3.0 7/0.25 18.6 40/0.20 0.8 6.6 62.5 624
    95 259/0.67 3.0 7/0.25 20.3 40/0.20 0.8 7.1 66.2 719
    120 336/0.67 3.0 7/0.30 27.2 40/0.20 0.8 7.4 72.0 876
    150 427/0.67 3.0 7/0.40 39.6 40/0.20 0.8 7.8 78.0 1072
    185 518/0.67 3.0 7/0.40 42.2 40/0.20 0.8 8.2 83.4 1236
    240 672/0.67 3.0 7/0.40 46.6 40/0.20 0.8 8.8 90.3 1500
    300 854/0.67 3.0 7/0.50 63.2 40/0.20 0.8 9.4 98.4 1840
    Type 209.6
    16 126/0.40 5.0 7/0.25 17.2 24/0.20 0.8 6.4 57.3 435
    25 209/0.40 5.0 7/0.25 18.6 24/0.20 0.8 6.7 61.2 512
    35 285/0.40 5.0 7/0.25 18.6 24/0.20 0.8 7.0 64.6 582
    50 380/0.40 5.0 7/0.25 21.3 40/0.20 0.8 7.3 68.5 668
    70 203/0.67 5.0 7/0.25 23.4 40/0.20 0.8 7.7 73.7 799
    95 259/0.67 5.0 7/0.30 29.2 40/0.20 0.8 8.1 77.8 935
    120 336/0.67 5.0 7/0.30 31.7 40/0.20 0.8 8.5 83.1 1090
    150 427/0.67 5.0 7/0.40 45.7 40/0.20 0.8 8.9 89.1 1310
    185 518/0.67 5.0 7/0.40 48.4 40/0.20 0.8 9.3 94.5 1480
    240 672/0.67 5.0 7/0.40 52.8 40/0.20 0.8 9.9 101.4 1750
    300 854/0.67 5.0 7/0.50 71.5 40/0.20 0.8 10.4 109.3 2120
    Type 209.11
    25 209/0.40 7.6 7/0.25 23.7 24/0.20 0.8 8.1 75.6 750
    35 285/0.40 7.6 7/0.30 30.2 24/0.20 0.8 8.4 79.7 858
    50 380/0.40 7.6 7/0.30 31.7 40/0.20 0.8 8.7 83.6 960
    70 203/0.67 7.6 7/0.30 34.1 40/0.20 0.8 9.1 88.8 1093
    95 259/0.67 7.6 7/0.40 47.5 40/0.20 0.8 9.6 93.7 1267
    120 336/0.67 7.6 7/0.40 51.0 40/0.20 0.8 9.9 98.8 1436
    150 427/0.67 7.6 7/0.40 53.7 40/0.20 0.8 10.3 103.5 1614
    185 518/0.67 7.6 7/0.40 57.2 40/0.20 0.8 10.7 108.8 1830
