Type 240 1.1 to 11KV



Applications :

  • These cables are mainly used as feeder cables for power supply to machinery or longwall supply. Cable contains 3 large pilots and large Core Screens provide for low resistance earthing.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

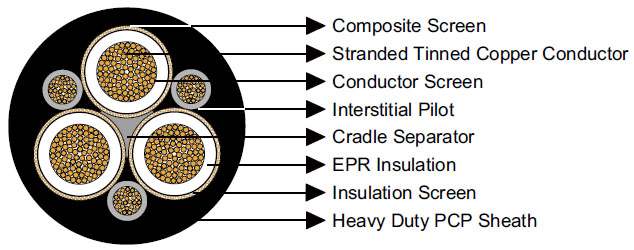

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
    3×Interstitial Pilot EPR covered flexible stranded tinned copper conductor.
    Cradle Separator Semiconductive PCP.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 240.1
    6 84/0.30 1.5 7/0.25 7.2 18/0.30 1.0 3.8 30.0 131
    10 77/0.40 1.5 7/0.25 8.6 27/0.30 1.0 3.8 32.6 159
    16 126/0.40 1.6 7/0.25 9.6 42/0.30 1.0 4.0 35.8 202
    25 209/0.40 1.6 7/0.25 11.3 66/0.30 1.2 4.3 39.7 265
    35 285/0.40 1.6 7/0.25 12.4 90/0.30 1.2 4.6 43.1 326
    50 380/0.40 1.7 7/0.25 14.1 120/0.30 1.2 5.0 47.7 404
    70 203/0.67 1.8 7/0.25 16.5 39/0.67 1.2 5.4 53.9 533
    95 259/0.67 2.0 7/0.25 18.2 39/0.67 1.2 6.0 58.6 635
    120 336/0.67 2.1 7/0.25 20.3 42/0.67 1.4 6.4 64.4 775
    150 427/0.67 2.3 7/0.25 22.3 54/0.67 1.4 6.9 70.2 940
    185 518/0.67 2.5 7/0.30 30.2 63/0.67 1.4 7.4 77.4 1150
    240 672/0.67 2.8 7/0.30 33.6 77/0.67 1.6 8.2 86.0 1440
    300 854/0.67 3.0 7/0.40 50.1 98/0.67 1.6 8.8 95.1 1810
    Type 240.3
    16 126/0.40 3.0 7/0.25 13.1 42/0.30 1.4 5.3 46.2 306
    25 209/0.40 3.0 7/0.25 14.8 66/0.30 1.4 5.6 50.1 379
    35 285/0.40 3.0 7/0.25 15.8 90/0.30 1.4 5.9 53.5 444
    50 380/0.40 3.0 7/0.25 17.2 120/0.30 1.4 6.3 57.6 525
    70 203/0.67 3.0 7/0.25 18.6 39/0.67 1.4 6.6 62.5 656
    95 259/0.67 3.0 7/0.25 20.3 39/0.67 1.4 7.1 66.2 750
    120 336/0.67 3.0 7/0.30 27.2 42/0.67 1.6 7.4 72.0 910
    150 427/0.67 3.0 7/0.40 39.6 54/0.67 1.6 7.8 78.0 1115
    185 518/0.67 3.0 7/0.40 42.2 63/0.67 1.8 8.2 83.4 1280
    240 672/0.67 3.0 7/0.40 46.6 77/0.67 1.8 8.8 90.3 1540
    300 854/0.67 3.0 7/0.50 63.2 98/0.67 1.8 9.4 98.4 1920
    Type 240.6
    16 126/0.40 5.0 7/0.25 17.2 42/0.30 1.4 6.4 57.3 440
    25 209/0.40 5.0 7/0.25 18.6 66/0.30 1.4 6.7 61.2 521
    35 285/0.40 5.0 7/0.25 18.6 90/0.30 1.6 7.0 64.6 593
    50 380/0.40 5.0 7/0.25 21.3 120/0.30 1.6 7.3 68.5 685
    70 203/0.67 5.0 7/0.25 23.4 39/0.67 1.6 7.7 73.7 830
    95 259/0.67 5.0 7/0.30 29.2 39/0.67 1.6 8.1 77.8 954
    120 336/0.67 5.0 7/0.30 31.7 42/0.67 1.8 8.5 83.1 1111
    150 427/0.67 5.0 7/0.40 45.7 54/0.67 1.8 8.9 89.1 1335
    185 518/0.67 5.0 7/0.40 48.4 63/0.67 1.8 9.3 94.5 1515
    240 672/0.67 5.0 7/0.40 52.8 77/0.67 1.8 9.9 101.4 1810
    300 854/0.67 5.0 7/0.50 71.5 98/0.67 1.8 10.4 109.3 2190
    Type 240.11
    25 209/0.40 7.6 7/0.25 23.7 66/0.30 2.0 8.1 75.6 752
    35 285/0.40 7.6 7/0.30 30.2 90/0.30 2.0 8.4 79.7 860
    50 380/0.40 7.6 7/0.30 31.7 120/0.30 2.0 8.7 83.6 961
    70 203/0.67 7.6 7/0.30 34.1 39/0.67 2.0 9.1 88.8 1125
    95 259/0.67 7.6 7/0.40 47.5 39/0.67 2.0 9.6 93.7 1300
    120 336/0.67 7.6 7/0.40 51.0 42/0.67 2.2 9.9 98.8 1470
    150 427/0.67 7.6 7/0.40 53.7 54/0.67 2.2 10.3 103.5 1659
    185 518/0.67 7.6 7/0.40 57.2 63/0.67 2.2 10.7 108.8 1880
