Type 241 Superflex 1.1 to 6.6KV



Applications :

  • These cables are similar to Type 241 cables, except more flexible and have a smaller ‘natural’ bending radius, suitable for use as monorail cable where cable loops will be narrower, thus allowing more space for other equipment and reducing opportunities for getting snagged.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

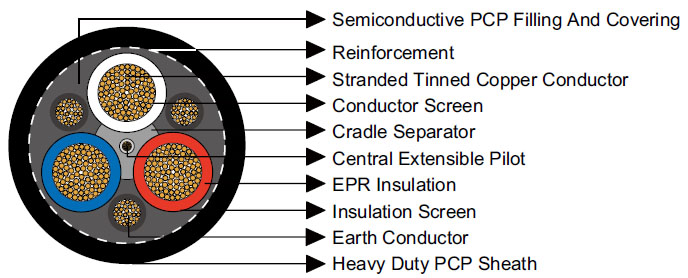

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Cradle Separator Semiconductive PCP.
    Overall Core Screen Semiconductive PCP filling and covering.
    3×Interstitial Earth Conductor Semiconductive PCP covered flexible stranded tinned copper conductor.
    1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 241.1
    70 361/0.50 1.8 110/0.40 1.0 40/0.20 0.8 5.3 53.0 485
    95 475/0.50 2.0 85/0.40 1.0 40/0.20 0.8 5.8 58.8 595
    120 608/0.50 2.1 110/0.40 1.2 40/0.20 0.8 6.3 62.5 715
    150 740/0.50 2.3 135/0.40 1.2 40/0.20 0.8 6.7 67.0 840
    185 925/0.50 2.5 165/0.40 1.4 40/0.20 0.8 7.3 75.1 1040
    240 1221/0.50 2.8 216/0.40 1.4 40/0.20 0.8 8.0 85.7 1340
    Type 241.3
    70 361/0.50 3.0 110/0.40 1.2 40/0.20 0.8 6.4 61.2 590
    95 475/0.50 3.0 135/0.40 1.2 40/0.20 0.8 6.8 65.9 710
    120 608/0.50 3.0 165/0.40 1.2 40/0.20 0.8 7.2 68.9 820
    150 740/0.50 3.0 216/0.40 1.2 40/0.20 0.8 7.6 72.5 940
    185 925/0.50 3.0 252/0.40 1.4 40/0.20 0.8 8.0 79.4 1130
    240 1221/0.50 3.0 324/0.40 1.4 40/0.20 0.8 8.6 88.3 1420
    Type 241.6
    70 361/0.50 5.0 110/0.40 1.4 40/0.20 0.8 7.4 72.1 750
    95 475/0.50 5.0 135/0.40 1.4 40/0.20 0.8 7.9 77.0 885
    120 608/0.50 5.0 165/0.40 1.4 40/0.20 0.8 8.3 79.9 1000
    150 740/0.50 5.0 216/0.40 1.4 40/0.20 0.8 8.6 83.3 1130
    185 925/0.50 5.0 252/0.40 1.4 40/0.20 0.8 9.0 90.2 1330
    240 1221/0.50 5.0 324/0.40 1.4 40/0.20 0.8 9.6 99.1 1640
