Type 245 1.1 to 6.6KV



Applications :

  • These very flexible cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables. Cable has 3 central pilots for earth continuity monitoring and for control circuits.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

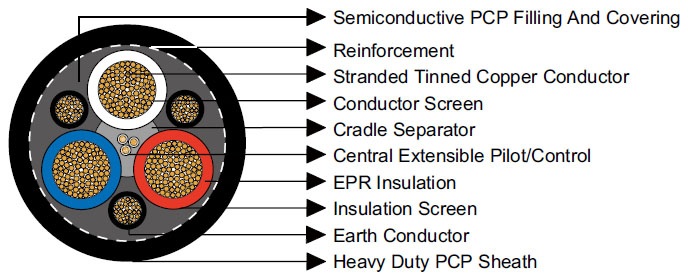

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Cradle Separator Semiconductive PCP.
    Overall Core Screen Semiconductive PCP filling and covering.
    3×Interstitial Earth Conductor Semiconductive PCP covered flexible stranded tinned copper conductor.
    3×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 245.1
    16 133/0.40 2.0 69/0.25 1.8 28/0.25 0.8 4.1 42.6 235
    25 259/0.36 1.6 91/0.25 1.8 28/0.25 0.8 4.2 43.4 269
    35 287/0.40 1.6 140/0.25 1.4 28/0.25 0.8 4.4 45.6 315
    50 703/0.30 1.7 120/0.30 1.0 28/0.25 0.8 4.8 48.4 390
    70 988/0.30 1.8 180/0.30 1.0 28/0.25 0.8 5.1 53.9 501
    95 1332/0.30 2.0 150/0.30 1.0 28/0.25 0.8 5.6 60.4 630
    120 1702/0.30 2.1 195/0.30 1.2 28/0.25 0.8 6.0 65.5 765
    150 2146/0.30 2.3 235/0.30 1.2 28/0.25 0.8 6.3 70.5 915
    Type 245.3
    25 259/0.36 3.0 91/0.25 1.5 28/0.25 0.8 5.2 51.1 338
    35 287/0.40 3.0 140/0.25 1.0 28/0.25 0.8 5.4 54.5 398
    50 703/0.30 3.0 120/0.30 1.0 28/0.25 0.8 5.7 56.8 490
    70 988/0.30 3.0 180/0.30 1.2 28/0.25 0.8 6.0 61.2 592
    95 1332/0.30 3.0 235/0.30 1.2 28/0.25 0.8 6.4 66.6 739
    120 1702/0.30 3.0 300/0.30 1.2 28/0.25 0.8 6.7 71.0 870
    150 2146/0.30 3.0 375/0.30 1.2 28/0.25 0.8 7.0 75.2 1028
    Type 245.6
    50 703/0.30 5.0 120/0.30 1.4 28/0.25 0.8 6.7 67.2 635
    70 988/0.30 5.0 180/0.30 1.4 28/0.25 0.8 7.0 71.7 755
    95 1332/0.30 5.0 235/0.30 1.4 28/0.25 0.8 7.4 77.1 905
    120 1702/0.30 5.0 300/0.30 1.4 28/0.25 0.8 7.7 81.3 1050
    150 2146/0.30 5.0 375/0.30 1.4 28/0.25 0.8 8.0 85.8 1210
