Type 275 1.1/1.1KV



Applications :

  • These cables are mainly used as a flexible feeder for shuttle cars and pump. Earth cores designed to reduce instances of wire breaks during reeling while under tension.

Standards :

  • AS/NZS 1802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

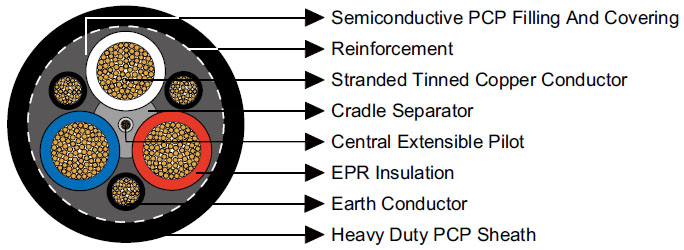

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Insulation EPR.
    Cradle Separator Semiconductive PCP.
    Overall Core Screen Semiconductive PCP filling and covering.
    3×Interstitial Earth Conductor Semiconductive PCP covered flexible stranded tinned copper conductor.
    1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Earth Conductor Pilot Conductor Thickness
    of Sheath
    Including
    SC PCP
    Layer    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Thickness
    of Covering    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm No/mm mm mm mm kg/100m
    Type 275
    16 126/0.40 1.6 60/0.30 1.0 24/0.20 0.8 3.8 30.2 145
    25 209/0.40 1.6 100/0.30 1.0 24/0.20 0.8 4.0 33.9 204
    35 285/0.40 1.6 140/0.30 1.0 24/0.20 0.8 4.3 37.9 270
    50 380/0.40 1.7 99/0.40 1.0 40/0.20 0.8 4.7 41.6 333
