Type 412 1.1/1.1KV



Applications :

  • These cables with green/yellow earths and pliable armour for mechanical protection may be used in applications where damage is likely and armour can reduce cases of costly downtime, suitable installed as feeder cables in sand mining operations.

Standards :

  • AS/NZS 2802:2003



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

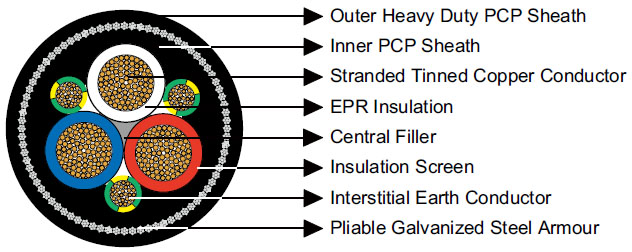

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Insulation EPR.
    Insulation Screen Semiconductive elastomer.
    Filler Elastomer centre filler.
    3×Interstitial Earth Conductor EPR covered flexible stranded tinned copper conductor.
    Inner Sheath PCP sheath. CPE/CSP sheath can be offered upon request.
    Pliable Armour Galvanized low carbon (mild) steel strands.
    Outer Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand
    Size    		 Insulation
    Thickness    		 Earth Conductor Pliable
    Armour
    Size    		 Thickness of
    Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Thickness
    of Covering    		 Inner Outer
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 412.1 Class2
    16 126/0.40 1.6 81/0.30 0.6 7/0.90 2.5 3.8 38.3 265
    25 209/0.40 1.6 81/0.30 0.6 7/0.90 2.5 3.8 38.4 294
    35 285/0.40 1.6 81/0.30 0.6 7/0.90 2.5 4.0 44.6 402
    50 380/0.40 1.7 120/0.30 0.8 7/0.90 2.5 4.4 49.2 500
    70 203/0.67 1.8 39/0.67 0.8 7/0.90 2.5 4.8 55.4 655
    95 259/0.67 2.0 48/0.67 0.8 7/0.90 2.5 5.4 60.1 775
    120 336/0.67 2.1 60/0.67 1.0 7/0.90 3.5 5.8 68.1 990
    150 427/0.67 2.3 77/0.67 1.0 7/0.90 3.5 6.3 73.8 1186
    185 518/0.67 2.5 91/0.67 1.0 7/0.90 3.5 6.8 80.2 1360
    240 672/0.67 2.8 119/0.67 1.2 7/0.90 3.5 7.5 88.7 1670
    300 854/0.67 3.0 156/0.67 1.2 7/1.25 4.5 8.2 100.9 2200
