Type 450 3.3 to 33KV



Applications :

  • These cables are suitable for supply of power to a wide range of applications, from dragline cable to slow reeling applications, where copper screened cable is required but light weight and smaller dimensions are also desired.

Standards :

  • AS/NZS 2802:2000



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

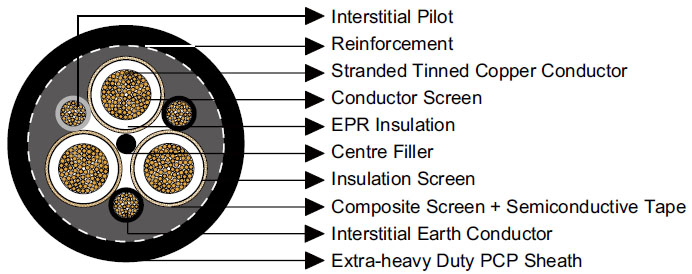

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR
    Insulation Screen Semiconductive elastomer.
    Composite Screen Tinned annealed copper braiding interwove with polyester yarn, covered with
    semiconductive tape.
    Filler Elastomer centre filler.
    2×Interstitial Earth Conductor CSP covered flexible stranded tinned copper conductor.
    1×Interstitial Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Extra-heavy duty PCP sheath. Extra-heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot/Earth Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Thickness
    of Covering    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type 450.3 Class1
    16 126/0.40 2.2 128/0.25 6.3 120/0.30 1.4 4.5 42.8 266
    25 209/0.40 2.2 118/0.30 8.3 120/0.30 1.4 4.8 46.9 338
    35 285/0.40 2.2 127/0.30 9.0 120/0.30 1.4 5.1 50.3 392
    50 380/0.40 2.4 141/0.30 10.0 183/0.30 1.4 5.6 55.5 487
    70 203/0.67 2.4 117/0.40 14.7 54/0.67 1.4 6.0 61.1 637
    95 259/0.67 2.4 123/0.40 15.5 70/0.67 1.6 6.3 64.3 734
    120 336/0.67 2.4 135/0.40 17.0 84/0.67 1.6 6.4 69.0 867
    150 427/0.67 2.4 144/0.40 18.1 112/0.67 1.6 6.6 73.3 1022
    185 518/0.67 2.4 144/0.40 18.1 132/0.67 1.6 6.7 78.1 1175
    240 672/0.67 2.4 136/0.50 26.7 168/0.67 1.6 6.9 84.5 1440
    300 854/0.67 2.4 144/0.50 28.3 228/0.67 1.6 7.0 90.4 1741
    Type 450.6 Class1
    16 126/0.40 3.0 118/0.30 8.3 120/0.30 1.4 5.0 47.6 317
    25 209/0.40 3.0 129/0.30 9.1 120/0.30 1.6 5.2 51.2 382
    35 285/0.40 3.0 139/0.30 9.8 120/0.30 1.6 5.5 54.7 443
    50 380/0.40 3.0 149/0.30 10.5 177/0.30 1.6 5.9 58.8 534
    70 203/0.67 3.0 123/0.40 15.5 54/0.67 1.6 6.3 64.3 682
    95 259/0.67 3.0 130/0.40 16.3 70/0.67 1.8 6.4 67.1 771
    120 336/0.67 3.0 141/0.40 17.7 84/0.67 1.8 6.5 71.9 912
    150 427/0.67 3.0 144/0.40 18.1 112/0.67 1.8 6.6 76.0 1073
    185 518/0.67 3.0 144/0.40 18.1 132/0.67 1.8 6.8 80.9 1222
    240 672/0.67 3.0 141/0.50 27.7 168/0.67 1.8 7.0 87.4 1502
    300 854/0.67 3.0 144/0.50 28.3 228/0.67 1.8 7.1 93.2 1790
    Type 450.11 Class1
    25 209/0.40 5.0 120/0.40 15.1 120/0.30 2.0 6.3 62.8 542
    35 285/0.40 5.0 127/0.40 16.0 120/0.30 2.0 6.4 65.8 601
    50 380/0.40 5.0 135/0.40 17.0 183/0.30 2.0 6.5 69.3 692
    70 203/0.67 5.0 144/0.40 18.1 54/0.67 2.0 6.6 73.8 826
    95 259/0.67 5.0 144/0.40 18.1 70/0.67 2.2 6.7 76.6 926
    120 336/0.67 5.0 144/0.40 18.1 84/0.67 2.2 6.9 81.6 1082
    150 427/0.67 5.0 139/0.50 27.3 112/0.67 2.2 7.0 86.1 1263
    185 518/0.67 5.0 144/0.50 28.3 132/0.67 2.2 7.1 90.8 1433
    240 627/0.67 5.0 144/0.50 28.3 168/0.67 2.2 7.3 96.8 1690
    300 854/0.67 5.0 144/0.50 28.3 228/0.67 2.2 7.4 102.7 2000
    Type 450.22 Class1
    35 285/0.40 7.6 144/0.40 18.1 120/0.30 2.5 6.8 78.4 805
    50 380/0.40 7.6 144/0.40 18.1 183/0.30 2.5 6.9 81.8 900
    70 203/0.67 7.6 140/0.50 27.5 54/0.67 2.5 7.0 86.8 1070
    95 259/0.67 7.6 144/0.50 28.3 70/0.67 2.5 7.2 89.8 1180
    120 336/0.67 7.6 144/0.50 28.3 84/0.67 2.5 7.3 94.5 1350
    150 427/0.67 7.6 144/0.50 28.3 112/0.67 2.5 7.4 98.6 1520
    185 518/0.67 7.6 144/0.50 28.3 132/0.67 2.5 7.5 103.4 1700
    240 627/0.67 7.6 144/0.50 28.3 168/0.67 2.5 7.7 109.4 1980
    300 854/0.67 7.6 144/0.50 28.3 228/0.67 2.5 7.9 115.4 2310
    Type 450.33 Class1
    50 380/0.40 10.5 144/0.50 28.3 183/0.30 2.5 7.4 96.9 1222
    70 203/0.67 10.5 144/0.50 28.3 54/0.67 2.5 7.5 101.4 1385
    95 259/0.67 10.5 144/0.50 28.3 70/0.67 2.5 7.7 104.4 1505
    120 336/0.67 10.5 144/0.50 28.3 84/0.67 2.5 7.8 109.2 1680
    185 518/0.67 10.5 144/0.50 28.3 132/0.67 2.5 8.0 118.0 2060
    240 627/0.67 10.5 144/0.50 28.3 168/0.67 2.5 8.2 124.0 2360
    300 854/0.67 10.5 144/0.50 28.3 228/0.67 2.5 8.4 130.1 2710
