Type 455 3.3 to 33KV



Applications :

  • These cables are designed with reduced insulation and sheath thickness, no cradle, 2 earth and 1 pilot core (each earth and pilot are the same size) in the outer interstices. These cables are suitable for reeling and trailing pplications where minimal diameter and mass is desired, particularly suited to stacker-reclaimer applications.

Standards :

  • AS/NZS 2802:2000



    AS/NZS 1125



    AS/NZS 3808



    AS/NZS 5000.1

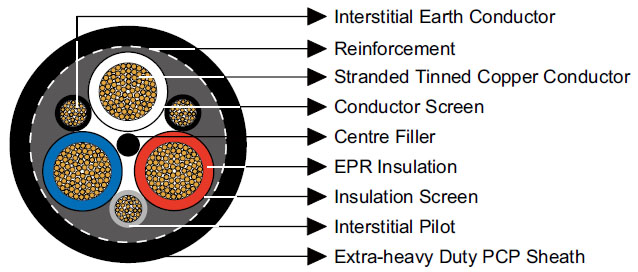

Construction :

  • 3×Conductors Flexible stranded tinned annealed copper conductor.
    Conductor Screen Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
    Insulation EPR
    Insulation Screen Semiconductive elastomer.
    Filler Elastomer centre filler.
    2×Interstitial Earth Conductor CSP covered flexible stranded tinned copper conductor.
    1×Interstitial Pilot EPR covered flexible stranded tinned copper conductor.
    Textile Reinforcement Open-weave braid reinforcement.
    Sheath Extra-heavy duty PCP sheath. Extra-heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Pilot/Earth Conductor Thickness
    of Sheath    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm mm mm kg/100m
    Type 455.3 Class1
    16 126/0.40 2.2 120/0.30 1.4 4.2 39.4 224
    25 209/0.40 2.2 120/0.30 1.4 4.5 43.3 281
    35 285/0.40 2.2 120/0.30 1.4 4.8 46.7 336
    50 380/0.40 2.4 183/0.30 1.4 5.3 51.9 424
    70 203/0.67 2.4 54/0.67 1.4 5.7 57.0 556
    95 259/0.67 2.4 70/0.67 1.6 6.1 60.5 646
    120 336/0.67 2.4 84/0.67 1.6 6.4 65.6 786
    150 427/0.67 2.4 112/0.67 1.6 6.5 69.7 931
    185 518/0.67 2.4 132/0.67 1.6 6.6 74.5 1072
    240 672/0.67 2.4 168/0.67 1.6 6.8 80.5 1310
    300 854/0.67 2.4 228/0.67 1.6 6.9 86.3 1600
    Type 455.6 Class1
    16 126/0.40 3.0 120/0.30 1.4 4.7 43.9 266
    25 209/0.40 3.0 120/0.30 1.6 5.0 47.8 332
    35 285/0.40 3.0 120/0.30 1.6 5.3 51.3 387
    50 380/0.40 3.0 183/0.30 1.6 5.6 55.1 466
    70 203/0.67 3.0 54/0.67 1.6 6.0 60.3 597
    95 259/0.67 3.0 70/0.67 1.8 6.3 63.5 692
    120 336/0.67 3.0 84/0.67 1.8 6.5 68.5 826
    150 427/0.67 3.0 112/0.67 1.8 6.6 72.6 977
    185 518/0.67 3.0 132/0.67 1.8 6.7 77.3 1122
    240 672/0.67 3.0 168/0.67 1.8 6.9 83.3 1361
    300 854/0.67 3.0 228/0.67 1.8 7.0 89.1 1652
    Type 455.11 Class1
    16 126/0.40 5.0 120/0.30 2.0 5.8 55.1 392
    25 209/0.40 5.0 120/0.30 2.0 6.1 59.0 462
    35 285/0.40 5.0 120/0.30 2.0 6.3 62.2 527
    50 380/0.40 5.0 183/0.30 2.0 6.4 65.6 607
    70 203/0.67 5.0 54/0.67 2.0 6.5 70.2 742
    95 259/0.67 5.0 70/0.67 2.2 6.7 73.2 837
    120 336/0.67 5.0 84/0.67 2.2 6.8 77.9 982
    150 427/0.67 5.0 112/0.67 2.2 6.9 82.0 1143
    185 518/0.67 5.0 132/0.67 2.2 7.0 86.8 1305
    240 672/0.67 5.0 168/0.67 2.2 7.2 92.8 1553
    Type 455.22 Class1
    16 126/0.40 7.6 120/0.30 2.5 6.6 68.5 578
    25 209/0.40 7.6 120/0.30 2.5 6.6 71.7 653
    35 285/0.40 7.6 120/0.30 2.5 6.7 74.7 719
    50 380/0.40 7.6 183/0.30 2.5 6.8 78.2 810
    70 203/0.67 7.6 54/0.67 2.5 7.0 82.9 956
    95 259/0.67 7.6 70/0.67 2.5 7.1 85.7 1061
    120 336/0.67 7.6 84/0.67 2.5 7.2 90.5 1221
    150 427/0.67 7.6 112/0.67 2.5 7.3 94.6 1392
    185 518/0.67 7.6 132/0.67 2.5 7.4 99.3 1564
    Type 455.33 Class1
    16 126/0.40 10.5 120/0.30 2.5 7.0 83.0 822
    25 209/0.40 10.5 120/0.30 2.5 7.1 86.4 920
    35 285/0.40 10.5 120/0.30 2.5 7.2 89.4 993
    50 380/0.40 10.5 183/0.30 2.5 7.3 92.8 1092
    70 203/0.67 10.5 54/0.67 2.5 7.4 97.4 1254
    95 259/0.67 10.5 70/0.67 2.5 7.6 100.4 1372
    120 336/0.67 10.5 84/0.67 2.5 7.7 105.1 1543
    150 427/0.67 10.5 112/0.67 2.5 7.8 109.2 1720
