Type A & B 1.1/1.1KV



Applications :

  • These cables are used as 1.1kV cables to distribute power within the mine, suitable for use in underground coal mines. For Type A cables, optional 3 pilots can be selected.

Standards :

  • AS/NZS 1972:2006



    AS/NZS 1125



    AS/NZS 3808

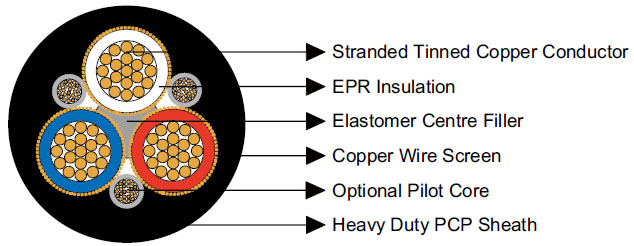

Construction :

  • Conductors Stranded tinned annealed copper conductor.
    Insulation EPR.
    Filling Elastomer centre filler.
    Optional Pilot Core (Type A only) CPE composite insulated and covered pilot conductor.
    Screen (earth conductor) Copper wire.
    Sheath Heavy duty PCP sheath.

Dimensions and Weight :

  • Nominal
    Conductor
    Area    		 Strand Size Insulation
    Thickness    		 Core Screen Pilot/Earth Conductor Nominal
    Sheath
    Thickness    		 Nominal
    Overall
    Diameter    		 Nominal
    Weight
    Strand Size Area of
    Screen    		 Strand Size Thickness
    of Covering
    mm² No/mm mm No/mm mm² No/mm mm mm mm kg/100m
    Type A & B
    16 7/1.70 1.4 48/0.40 6.0 24/0.20 1.6 2.5 24.6 120
    25 19/1.35 1.4 57/0.40 7.2 32/0.20 1.8 2.5 28.0 170
    35 19/1.53 1.5 63/0.40 7.9 30/0.25 1.8 2.5 30.4 205
    50 19/1.78 1.7 72/0.40 9.0 50/0.25 2.0 3.0 34.9 270
    70 19/2.14 1.8 67/0.50 13.2 80/0.25 2.0 3.3 40.2 370
    95 19/2.52 2.0 77/0.50 15.1 80/0.25 2.0 3.8 46.1 490
    120 37/2.03 2.2 65/0.67 22.9 80/0.25 2.0 3.8 51.1 615
    150 37/2.25 2.3 70/0.67 24.7 80/0.25 2.0 4.4 56.0 740
    185 37/2.52 2.5 78/0.67 27.5 80/0.25 2.0 5.1 62.3 915
    240 61/2.25 2.7 45/1.35 64.4 80/0.25 2.0 5.7 72.9 1290
