Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 5kV



Applications :

  • These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

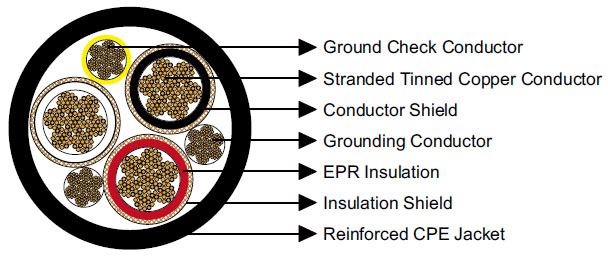

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Ground Check Conductor Tinned copper with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Ground
    Check
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×6 133 10 8 0.110 2.8 0.185 4.7 1.56 39.6 1560 2322 93
    3×4 259 8 8 0.110 2.8 0.185 4.7 1.68 42.7 1895 2820 122
    3×2 259 6 8 0.110 2.8 0.205 5.2 1.87 47.5 2445 3639 159
    3×1 259 5 8 0.110 2.8 0.205 5.2 1.95 49.5 2800 4167 184
    3×1/0 266 4 8 0.110 2.8 0.220 5.6 2.08 52.8 3230 4807 211
    3×2/0 329 3 8 0.110 2.8 0.220 5.6 2.20 55.9 3800 5655 243
    3×3/0 418 2 8 0.110 2.8 0.235 6.0 2.36 59.9 4475 6660 279
    3×4/0 532 1 8 0.110 2.8 0.235 6.0 2.50 63.5 5265 7835 321
    3×250 627 1/0 6 0.120 3.0 0.250 6.4 2.69 68.3 6105 9085 355
    3×300 741 1/0 6 0.120 3.0 0.250 6.4 2.81 71.4 6875 10231 398
    3×350 888 2/0 6 0.120 3.0 0.265 6.7 2.95 74.9 7795 11600 435
    3×500 1221 4/0 6 0.120 3.0 0.280 7.1 3.31 84.1 10415 15499 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
