Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 8kV



Applications :

  • These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges,drills and for power feeders.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

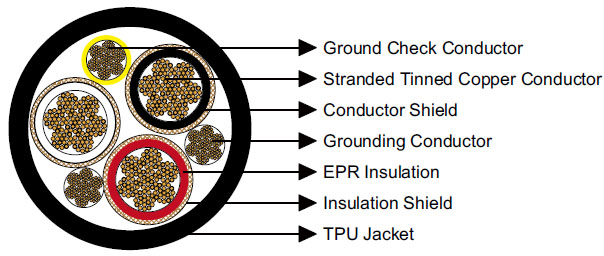

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Conductor Shield Conducting layer.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Conducting tape + Tinned copper/textile braid.
    Ground Check Conductor Tinned copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Thermoplastic Polyurethane (TPU) Jacket, black.

Options :

  • Other jacket materials such as CPE/CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 8×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Ground
    Check
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×4 259 8 8 0.150 3.8 0.205 5.2 1.94 49.3 2019 3004 122
    3×2 259 6 8 0.150 3.8 0.220 5.6 2.12 53.8 2603 3873 159
    3×1 259 5 8 0.150 3.8 0.220 5.6 2.21 56.1 2913 4334 184
    3×1/0 266 4 8 0.150 3.8 0.220 5.6 2.32 58.9 3351 4986 211
    3×2/0 323 3 8 0.150 3.8 0.235 6.0 2.46 62.5 3946 5871 243
    3×3/0 418 2 8 0.150 3.8 0.250 6.4 2.62 66.5 4582 6817 279
    3×4/0 532 1 8 0.150 3.8 0.250 6.4 2.75 69.8 5321 7917 321
    3×250 627 1/0 6 0.150 3.8 0.250 6.4 2.89 73.4 6101 9077 355
    3×350 888 2/0 6 0.150 3.8 0.280 7.1 3.21 81.3 7696 11450 435
    3×500 1221 4/0 6 0.150 3.8 0.295 7.5 3.56 90.4 10199 15174 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
