Type G-GC Three-Conductor Flat Portable Power Cable 2kV



Applications :

  • These flat parallel cables are designed for use on AC mining equipment, such as A.C. shuttle cars, drills,cutting and loading machines.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

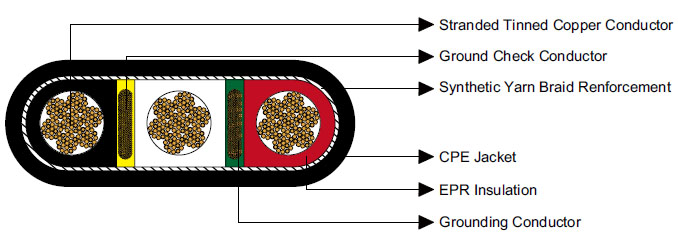

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Ground Check Conductor Tinned copper conductor with a yellow insulation.
    Grounding Conductor Tinned copper conductor with an optional green outer covering.
    Reinforcement Synthetic yarn.
    Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Ground
    Check
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter
    Height×Width    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×6 133 8 8 0.06 1.5 0.095 2.4 0.66×1.67 16.8×42.4 900 1340 79
    3×4 259 7 8 0.06 1.5 0.095 2.4 0.72×1.87 18.3×47.5 1175 1750 104
    3×3 259 6 6 0.06 1.5 0.110 2.8 0.78×2.08 19.8×52.8 1395 2080 120
    3×2 259 5 6 0.06 1.5 0.110 2.8 0.85×2.23 21.6×56.6 1625 2415 138
    3×1 259 4 6 0.08 2.0 0.125 3.2 0.96×2.50 24.4×63.5 2090 3110 161
    3×1/0 259 3 5 0.08 2.0 0.140 3.6 1.01×2.67 25.6×67.8 2470 3675 186
    3×2/0 329 2 5 0.08 2.0 0.140 3.6 1.09×2.86 27.7×68.1 2940 4375 215
    3×3/0 413 1 5 0.08 2.0 0.155 3.9 1.18×3.12 30.0×79.2 3515 5230 249
    3×4/0 532 1/0 5 0.08 2.0 0.155 3.9 1.24×3.30 31.5×83.8 4245 6315 287
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
