Type SHD-GC Three-Conductor Round Portable Power Cable,CPE Jacket 2kV



Applications :

  • These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders,drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

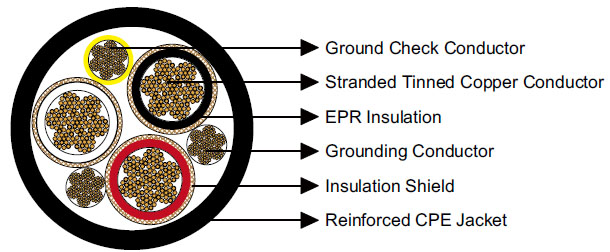

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Insulation Shield Tinned copper/textile braid.
    Ground Check Conductor Tinned copper conductor with a yellow polypropylene insulation.
    Grounding Conductor Tinned copper conductor.
    Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Grounding
    Conductor
    Size    		 Ground
    Check
    Conductor
    Size    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of cores
    ×AWG/kcmil    		 - AWG/
    kcmil    		 AWG/
    kcmil    		 inch mm inch mm inch mm lbs/kft kg/km A
    3×6 133 10 10 0.07 1.8 0.155 3.9 1.29 32.8 1130 1682 93
    3×4 259 8 10 0.07 1.8 0.155 3.9 1.40 35.6 1460 2173 122
    3×3 259 7 10 0.07 1.8 0.170 4.3 1.51 38.3 1680 2500 140
    3×2 259 6 10 0.07 1.8 0.170 4.3 1.59 40.4 1990 2961 159
    3×1 259 5 8 0.08 2.0 0.190 4.8 1.76 44.7 2385 3549 184
    3×1/0 266 4 8 0.08 2.0 0.190 4.8 1.86 47.2 2765 4115 211
    3×2/0 329 3 8 0.08 2.0 0.205 5.2 2.00 50.8 3255 4844 243
    3×3/0 418 2 8 0.08 2.0 0.205 5.2 2.13 54.1 3890 5789 279
    3×4/0 532 1 8 0.08 2.0 0.220 5.6 2.31 58.7 4720 7024 321
    3×250 627 1/0 6 0.095 2.4 0.220 5.6 2.51 63.8 5460 8125 355
    3×300 741 1/0 6 0.095 2.4 0.235 6.0 2.68 68.1 6395 9517 398
    3×350 888 2/0 6 0.095 2.4 0.235 6.0 2.81 71.4 7280 10834 435
    3×500 1221 4/0 6 0.095 2.4 0.265 6.7 3.19 81.0 9820 14614 536
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
