FIREROL Thin Wall Multipair Individually Screened & Sheathed Cables, Overall Screened with Standard Wall sheath 300/500V          EN 50306-4 (FRL-TW-05MP-SW-IOS)

Application :

  • -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
  • -Used in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

  • Conductor Tinned annealed copper wires as defined in EN 50306-2
    Insulation LSZH special compound
    Overal screen Tinned annealed copper wires
    Pair screen Individual screened and sheathed. Screened according to EN 50306-3; Sheathed according to EN 50306-3 (S1. S2)
    Pair Identification Pairs numbered according to EN 50306-4
    Outer sheath LSZH special compound (S2. EM 101 - EM 104)

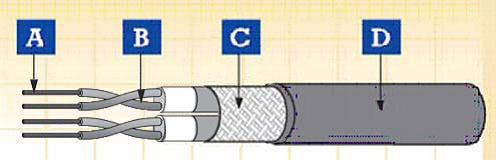

  • A. Conductor



    B. Insulation



    C. Screen



    D. Sheath

Electrical & Mechanical Properties :

  • Nominal Voltage 300/500 V
    Maximum Conductor Temperature 90°C /105°C (fixed installation)
    Minimum Permissible Ambient Temperature -25/-40°C (fixed installation)
    Bending Radius 10 x Overall Diameter

Chemical & Environmental Properties :

  • EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

Fire Performance for rolling stock application :

  • EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0

Fire Performance for rolling stock application :

  • EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24;
    NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;
    NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;
    NF C 20-454; VDE 0472 Teil 815
    Halogen Free

    EN 50267-2-2/3; IEC 60754-2; NF C 32-074;

    NF C 20-453; VDE 0472 Teil 813

    Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index

FRL-TW-05MP-SW-IOS 300/500 V :

  • Number of Cores and
    Nominal Cross Section
    Minimum Thickness of
    Sheath at any Point
    Overall Diameter Weight
    min. max.
    n x mm2 mm mm mm kg/km
    2 x 2 x 0.5 0.56 9.0 10.2 90
    3 x 2 x 0.5 0.56 9.6 10.8 120
    4 x 2 x 0.5 0.56 10.7 11.9 160
    7 x 2 x 0.5 0.56 13.0 14.2 240

    2 x 2 x 0.75 0.56 9.8 11.0 90
    3 x 2 x 0.75 0.56 10.5 11.7 150
    4 x 2 x 0.75 0.56 11.6 12.8 180
    7 x 2 x 0.75 0.56 14.0 15.6 290

    2 x 2 x 1.0 0.56 10.2 11.6 110
    3 x 2 x 1.0 0.56 10.9 12.1 160
    4 x 2 x 1.0 0.56 12.1 13.3 200
    7 x 2 x 1.0 0.56 14.6 16.2 330

    2 x 2 x 1.5 0.56 12.2 13.4 150
    3 x 2 x 1.5 0.56 13.1 14.3 230
    4 x 2 x 1.5 0.56 14.3 15.9 290
    7 x 2 x 1.5 0.56 17.6 19.2 490
Corona Resistant
Highly Flexible
UV Resistant
Ozone Resistant
Abrasion Retardant
Cold- resistant



Resistance To
Soldering Heat
Acid&Alkaline
Resistant
IRM 903
Fuel Oil Resistant
IRM 902
Mineral Oil Resistant
Fire Retardant
NF C32-070-2.2(C2)
IEC60332-3-24/EN50266-2-4
Flame Retardant
NF C32-070-2.1(C1)
IEC60332-1-2/EN50265-2-1



Low Toxicity
NF X70-100/NF F63 808
TM1-04/BS 6853
Low Corrosivity
IEC60754-2/EN50267-2-2/3
NF C32-074/VDE 0472-813
Low Smoke Emission
IEC 61034-2 / EN 50268-2
NF C32-073/VDE 0472-816
Zero Halogen
IEC 60754-1/EN 50267-2-1
NF C32-074//VDE 0472-815
