400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • VDE 0295

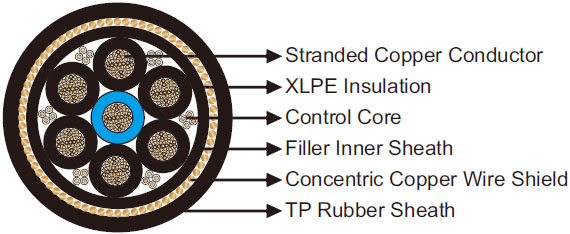

Construction

Airport Cable
Conductor Stranded bare copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation XLPE.
Control Core 1mm^2 stranded copper conductor with PVC insulation.
Inner Sheath Filler.
Shield Concentric copper conductor (25mm^2).
Outer Sheath PUR. TPE can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -55℃~+85℃
Minimum Bending Radius static: 8×OD; dynamic: 12×OD
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Diameter of Power Core Nominal Diameter of Control Core Nominal Diameter Under Shield Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm kg/km
7×35+6×(4×1) 10.5 2.1 40.8 42.8 3000
