400Hz Airport Cables 7-core With Shielded Control Wires

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • VDE 0295

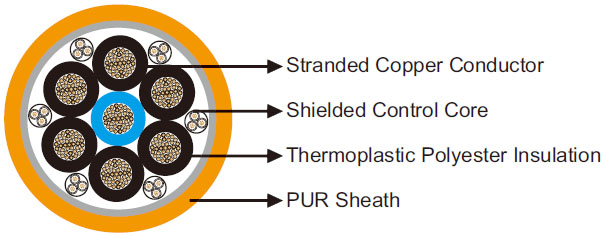

Construction

Airport Cable
Conductor Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation Thermoplastic polyester.
Control Core 1mm^2 stranded copper conductor with polyolefin insulation & tinned copper braid.
Outer Sheath PUR. TPE can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 4×OD; dynamic: 6×OD
Halogen Free Yes
No Corrosive & Toxic Gases Yes
Flame Retardant Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of Power Core Nominal Diameter of Control Core Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm kg/km
7×25+6×(3×1)C 9.6 2.1 37.5 2800
7×35+6×(3×1)C 11.1 2.1 40.3 3500
7×35+6×(4×1)C 11.1 2.1 44.5 4200
