FAA L-824 Type B Shielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

Standards

  • FAA L-824 Type B
  • ICEA S-93-639 / NEMA WC74

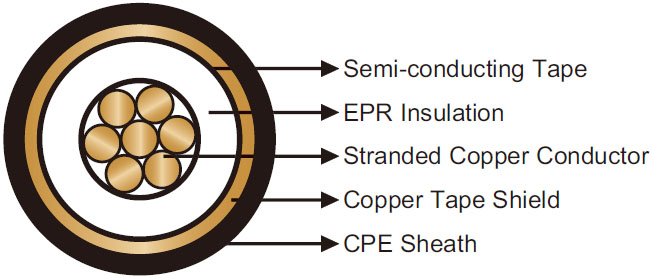

Construction

Airport Cable
Conductor Stranded tinned copper conductor.
Insulation EPR.
Semi-Conductor Helically applied semi-conducting tape.
Shield Tinned copper tape.
Separator Separation tape.
Sheath CPE

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+85℃
Minimum Bending Radius 12×OD
Halogen Free Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. × mm^2/ AWG - mm inches mm inches mm inches kg/km lbs/kft
1×6mm^2 7 2.3 0.09 1.2 0.05 11.1 0.44 194 130
1×8 7 2.3 0.09 1.2 0.05 11.7 0.46 225 151
