FAA L-824 Type C Unshielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational ids, and obstruction lighting, can be installed in conduit and direct burial.

Standards

  • FAA L-824 Type C
  • ICEA S-96-659/NEWA WC71

Construction

Airport Cable

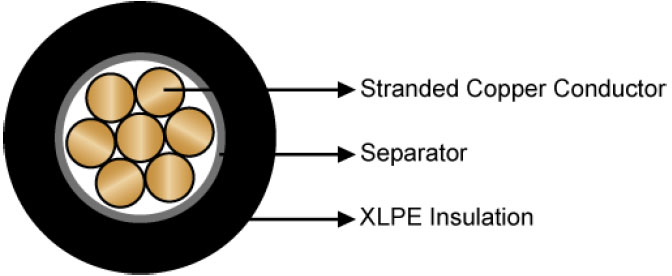

Conductor Stranded bare copper to ASTM B3 and ASTM B8.
Separator Semi-conductive extruded layer or semi-conductive tape.
Insulation XLPE.

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 5×OD
Lead Free Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No. × AWG - mm inches mm inches kg/km lbs/kft
1×8 7/19 2.79 0.11 9.65 0.380 132 89
1×6 7/19 2.79 0.11 10.67 0.420 186 125
1×4 7/19 2.79 0.11 11.68 0.46 268 180
