These cables are used as airfield lighting cable for secondary electrical circuits.


  • IEC 60502-2


Airport Cable

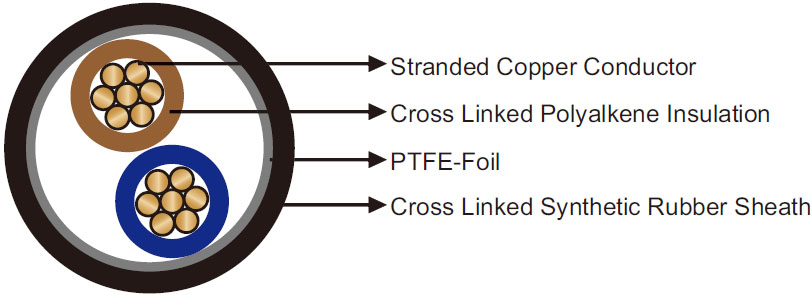

Conductor Stranded tinned copper conductor.
Insulation Cross linked polyalkene.
Separator PTFE-Foil.
Outer Sheath Cross linked synthetic rubber compound.

Technical Data

Rated Voltage Uo/U (Um) 500V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -20℃~+90℃
Minimum Bending Radius 5×OD
Halogen Free Yes
No Toxicity & Corrosivity Yes
Low Smoke Yes
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Sheath Thickness Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm kg/km
2×4 0.5 1.1 9.8 167
