Airport Pavement Cable 600V

Applications

These cables are used for connection between Control Tower and Constant Current Regulators (CCRs), suitable for transmission of voice data up to 2,000 kHz.

Standards

  • FAA 150/5345-30

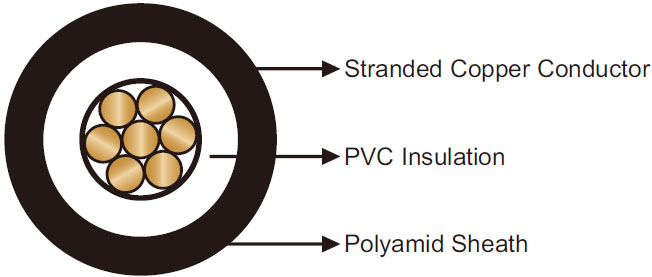

Construction

Airport Cable
Conductor Stranded copper conductor.
Insulation PVC.
Sheath Polyamid (nylon).

Technical Data

Rated Voltage Uo/U (Um) 600V
Operating Temperatures -45℃~+85℃
Minimum Bending Radius 5×OD
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm^2/AWG mm mm mm kg/km
1×4 mm^2 0.6 0.15 4.1 48
1×12 0.6 0.15 3.8 41
1×10 0.8 0.15 4.9 66
