Split Concentric Halogen Free 400Hz Airport Cable

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • VDE 0295
Split Concentric Halogen Free 400Hz Airport Cable

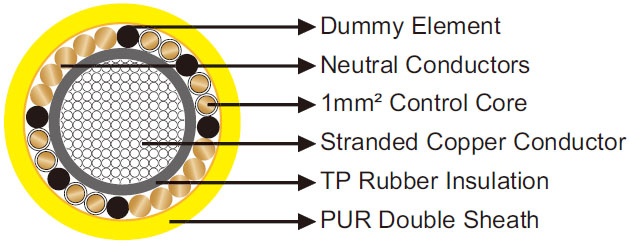

Construction

Conductor Stranded copper conductor, Class 6 /Class 5 to VDE 0295/IEC 60228.
Insulation TP rubber.
Control Core 1mm^2 stranded copper conductor with XLPE insulation.
Cable Assembling Helical concentric stranding of bare neutral conductors and control wire separated by dummies.
Sheath 2 layer PUR.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+85℃
Minimum Bending Radius Static: 6×OD ; Dynamic: 8×OD
Flame Retardant Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter Over Insulation Nominal Diameter of Control Core Nominal Diameter Under Sheath Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm kg/km
1×70+10×2.5+8×1 13.8 2.1 17.8 22.2 1300
