AV

Applications

This PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

Construction

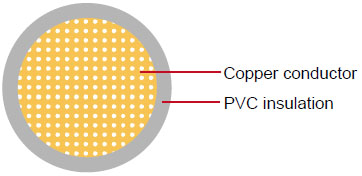

AV
Conductor Cu-ETP1 bare according to D 609-90
Insulation PVC
Standard Compliance JIS C 3406

Technical Parameters

Operating temperature –40 °C to +85 °C
Intermittent temperature 120°C
Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1 x0.50 7/0.32 1.00 32.70 0.60 2.20 2.40 10
1 x0.85 11/0.32 1.20 20.80 0.60 2.60 2.60 13
1 x1.25 16/0.32 1.50 14.30 0.60 2.90 2.90 17
1 x2.00 26/0.32 1.90 8.81 0.60 3.40 3.40 26
1 x3.00 41/0.32 2.40 5.59 0.70 4.10 4.10 40
1 x5.00 65/0.32 3.00 3.52 0.80 4.90 4.90 62
1 x8.00 50/0.45 3.70 2.32 0.90 5.80 5.80 92
1 x10.00 63/0.45 4.50 1.84 1.00 6.90 6.90 120
1 x15.00 84/0.45 4.80 1.38 1.10 7.40 7.40 160
1 x20.00 41/0.80 6.10 0.89 1.10 8.30 8.80 226
1 x30.00 70/0.80 8.00 0.52 1.40 10.80 11.50 384
1 x40 85/0.80 8.60 0.43 1.40 11.40 12.10 462
1 x50 108/0.80 9.80 0.34 1.60 13.00 13.80 583
1 x60 127/0.80 10.40 0.29 1.60 13.60 14.40 678
1 x85 169/0.80 12.00 0.22 2.00 16.00 17.00 924
1 x100 217/0.80 13.60 0.17 2.00 17.60 18.60 1151
1 x0.5f 20/0.18 1.00 36.70 0.60 2.40 2.40 9
1 x0.75f 30/0.18 1.20 24.40 0.60 2.60 2.60 12
1 x1.25f 50/0.18 1.50 14.70 0.60 2.90 2.90 18
1 x2f 37/0.26 1.80 9.50 0.60 3.40 3.40 25
1 x3f 61/0.26 2.40 5.76 0.70 4.10 4.10 40

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
