CAVS

Applications

This PVC insulated single-core low tension cable is used for automotive wiring.

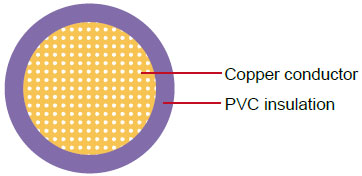

Construction

CAVS
Conductor Cu-ETP1 according to JIS C 3102
Insulation PVC
Standard Compliance JASO D 611-94

Technical Parameters

Operating temperature: –40 °C to +80 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1 x0.30 7/0.26 0.70 50.20 0.35 1.40 1.50 3
1 x0.50 7/0.32 0.90 32.70 0.35 1.60 1.70 5
1 x0.85 11/0.32 1.10 20.80 0.35 1.80 1.90 7
1 x1.25 16/0.32 1.40 14.30 0.35 2.10 2.20 10

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
