FL6Y2G

Applications

This FEP insulated multi-cores cable is used for automobiles.

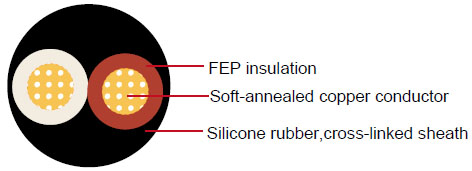

Construction

FL6Y2G
Conductor Cu-ETP1 according to DIN EN 13602
Insulation Fluorinated ethylene propylene(FEP) insulation
Sheath Siliconne rubber,cross-linked according to ISO 14572 class F
Standard Compliance ISO 6722 Class F

Technical Parameters

Operating temperature: –40°C to +210°C

Conductor Insulation Cable
Nominal cross-section No. andDia. of Wires Diameter max. Electrical resistance at 20°C max. Thickness Wall nom. Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm (mm) mΩ/m (mm) (mm) mm mm kg/km
2x0.35 12/0.21 0.8 52 0.4 0.53 4.6 5 32
2x0.25 24/0.16 0.7 86.5 0.4 0.53 3.4 3.8 24

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
