FLR13Y

Applications

This TPE-E insulated single-core cable is used for automotive industry. It has good mechanical and thermal properties and excellent resistance to aggressive media.

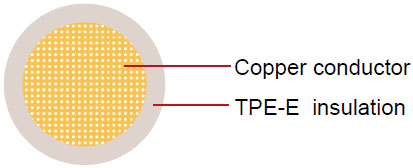

Construction

FLR13Y
Conductor Cu-ETP1 bare according to DIN EN13602
Insulation Thermoplastic elastomeric on polyester basis (TPE-E)
Standard Compliance ISO 6722 Class B

Technical Parameters

Operating temperature: –40 °C to +150 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.50 19/0.19 1.00 37.10 0.30 1.50 1.70 6
1x0.75 19/0.23 1.20 24.70 0.30 1.70 1.90 9
1x1.00 19/0.26 1.35 18.50 0.30 1.90 2.10 11
1x1.50 19/0.32 1.70 12.70 0.30 2.20 2.40 16
1x2.00 19/0.38 2.00 9.31 0.30 2.40 2.70 22
1x2.50 19/0.41 2.20 7.60 0.35 2.70 3.00 25
1x4.00 56/0.31 2.75 4.71 0.40 3.40 3.70 40
1x6.00 84/0.31 3.30 3.10 0.40 4.00 4.30 60

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
