FLR2X11Y

Applications

This XLPE insulated, PUR sheathed multi-cores cable is used for ABS systems. it has good bending strength properties.

Construction

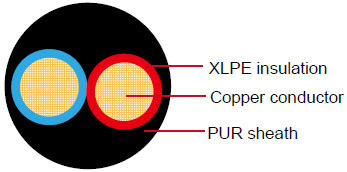

FLR2X11Y
Conductor Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation Crosslinked polyethylene (XLPE)
Sheath Polyether polyurethane (PUR)
Sheath colour black
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –40 °C to +125 °C

Special Properties

Special conductor highly tensile and bending resistant Cu-alloy, Cadmium-free.

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C Bare/tinned max. Thickness Wall nom. Diameter of Core Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
2 x0.35 12/0.21 0.90 52.00/54.50 0.25 1.35 0.50 3.50 3.90 18
2 x0.50 19/0.19 1.00 37.10/40.10 0.30 1.50 0.65 4.20 4.60 25
2 x0.50 64/0.10 1.00 38.20/40.10 0.35 1.60 0.95 5.00 5.40 36
2 x0.75 42/0.16 1.20 24.70/27.10 0.50 2.20 0.90 6.00 6.40 46

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
