FLR6Y

Applications

This FEP insulated single-core cable is used for automobiles, motorcycles and other motor vehicles, Especially suitable for wiring inside the engine compartment.

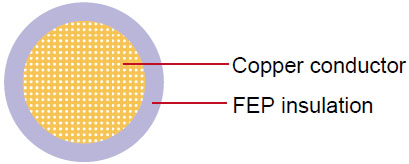

Construction

FLR6Y
Conductor Cu-ETP1 bare or tinned according to DIN EN13602
Insulation Fluorinated Ethylene Propylene (FEP)
Standard Compliance ISO 6722 Class B LV112

Technical Parameters

Operating temperature: –65 °C to +210 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.35 12/0.21 0.90 52.00 0.30 1.20 1.40 5
1x0.50 16/0.21 1.00 37.10 0.30 1.50 1.70 7
1x0.75 24/0.21 1.20 24.70 0.25 1.60 1.80 9
1x1.00 32/0.21 1.35 18.50 0.30 1.80 2.00 11
1x1.50 30/0.26 1.70 12.70 0.30 2.10 2.30 16
1x2.50 50/0.26 2.20 7.60 0.35 2.70 2.90 26
1x4.00 56/0.31 2.75 4.70 0.40 3.30 3.60 41

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
