FLR7Y

Applications

This ETFE insulated single-core cable is used for automobiles, it has good mechanical and thermal properties and excellent resistance to aggressive media, especially for the engine compartment.

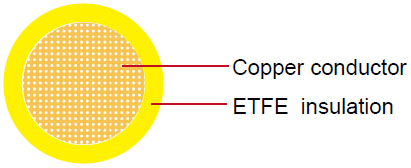

Construction

FLR7Y
Conductor Cu-ETP1 bare or tinned according to DIN EN13602
Insulation Ethylene tetrafluoroethylene (ETFE)
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –65 °C to +180 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Resistance at 20°CBare/Tinned max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
FLR7Y-B
1x0.35 12/0.21 0.90 52.00/54.50 0.20 1.30 1.40 4.7
1x0.50 16/0.21 1.00 37.10/38.20 0.22 1.50 1.70 6.6
1x0.75 24/0.21 1.20 24.70/25.40 0.24 1.80 1.80 9.6
1x1.00 32/0.21 1.35 18.50/19.10 0.24 2.00 2.00 12.6
1x1.50 30/0.26 1.70 12.70/13.00 0.24 2.30 2.30 16.5
1x2.50 50/0.26 2.20 7.60/7.80 0.28 2.85 2.90 26.8
1x4.00 56/0.31 2.75 4.70/4.80 0.32 3.55 3.60 42.0
1x6.00 84/0.31 3.30 3.14/3.23 0.32 4.15 4.30 61.0
1x10.00 80/0.41 4.50 1.82/1.85 0.48 5.75 6.00 109.0
1x16.00 126/0.41 6.30 1.16/1.18 0.52 6.85 7.10 166
FLR7Y-A
1x0.35 7/0.26 0.80 52.00/54.50 0.20 1.30 1.40 4.5
1x0.50 19/0.19 1.00 37.10/38.20 0.22 1.50 1.60 6.6
1x0.75 19/0.23 1.20 24.70/25.40 0.24 1.80 1.90 9.0
1x1.00 19/0.26 1.35 18.50/19.10 0.24 2.00 2.10 12.4
1x1.50 19/0.32 1.70 12.70/13.00 0.24 2.30 2.40 17.8
1x2.50 19/0.41 2.20 7.60/7.82 0.28 2.85 3.00 29.0

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
