FLRY-B

Applications

This PVC insulated single-core cable with symmetrical conductor structure (type B) and thin wall is used for automobiles, Motorcycles electrical equipment in high temperature condition.

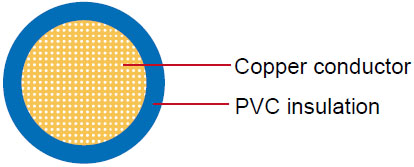

Construction

FLRY-B
Conductor Cu-ETP1 bare or tinned copper according to DIN EN13602
Insulation PVC
Standard Compliance ISO 6722 Class B LV112

Technical Parameters

Operating temperature: –40°C to 105°C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Resistance at 20°C Bare/Tinned max. Thickness Wall min. Overall Diameter Weight approx.
mm2 No./mm mm mΩ/m mm mm kg/km
1x0.35 12/0.21 0.90 52.00/5.50 0.20 1.40 5
1x0.50 16/0.21 1.00 37.10/38.20 0.22 1.60 7
1x0.75 24/0.21 1.20 24.70/25.40 0.24 1.90 9
1x1.00 32/0.21 1.35 18.50/19.10 0.24 2.10 11
1x1.50 30/0.26 1.70 12.70/13.00 0.24 2.40 16
1x2.00 30/0.31 1.90 9.31/9.59 0.24 2.60 22
1x2.50 50/0.26 2.20 7.60/7.80 0.28 3.00 26
1x3.00 45/0.31 2.40 6.21/6.40 0.28 3.20 33
1x4.00 56/0.31 2.75 4.70/4.80 0.32 3.70 42
1x6.00 84/0.31 3.30 3.10/3.20 0.32 4.30 61
1x10.00 80/0.41 4.50 1.82/1.85 0.48 6.00 108
1x16.00 126/0.41 6.30 1.16/1.18 0.52 7.90 170
1x25.00 196/0.41 7.80 0.74/0.76 0.52 9.40 265

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
