FLRYB11Y

Applications

This PVC insulated ,PUR sheathed low tension multi-cores cable is used for automobiles; it has excellent abrasion resistance and better resistance to bending fatigue.

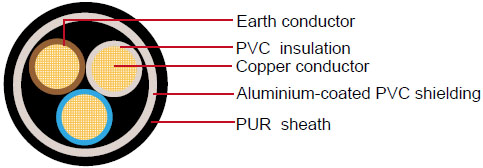

Construction

FLRYB11Y
Conductor Cu-ETP1 bare according to DIN EN 13602
Insulation PVC
Cover for the earth conductor Conductive PVC
Shielding Aluminium-coated PVC foil
Sheath polyurethane (PUR)
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –40 °C to +105 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20 °C max. Thickness Wall nom. Diameter of Core Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
1x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 3.90 4.30 21
2x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 4.10 4.50 24
3x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 4.40 4.80 30
4x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 4.80 5.20 39
5x0.35+(0.35) 7/0.26 0.80 52.00 0.25 1.25 0.60 5.40 5.80 46

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
