FLRYCY

Applications

This PVC insulated, PVC sheathed multi-cores cable is used for car communication cable.

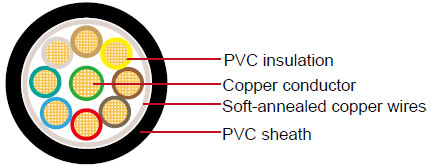

Construction

FLRYCY
Conductor Cu-ETP1 according to DIN EN 13602
Insulation PVC
Shielding Soft-annealed copper wires CU-ETP1 or tin coated soft-annealed copper wires according to DIN 40500 and DIN EN 13602.
  Optical coverage of approximately 85% is reflected in very efficient shield attenuation.
Sheath PVC
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –40 °C to +105 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C Bare/tinned max. Thickness Wall nom. Diameter of Core Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
9 x0.08 10/0.11 0.45 35.30/36.50 0.20 0.80 0.60 4.60 4.90 38
10 x0.25 14/0.16 0.70 84.80/86.50 0.20 1.10 0.60 5.80 6.20 68
5 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.30 0.50 4.70 5.10 47
8 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.25 0.65 5.90 6.30 75
10 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.25 0.65 6.50 6.90 83

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
