FLYY

Applications

This PVC insulated, PVC sheathed low tension multi-cores cable is used for automobiles, motorcycles and other motor vehicles.

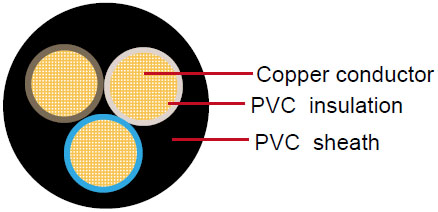

Construction

FLYY
Conductor Cu-ETP1 bare or tinned according to DIN EN13602
Insulation PVC
Sheath PVC
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –40 °C to +105 °C

Conductor Insulation Cable
Nominal Cross-section No. andDia. of Wires Diameter max. Electrical Resistance at 20°C Bare/tinned Max. Thickness Wall nom. Diameter of Core Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
2x 0.50 16/0.21 1.00 37.10/38.20 0.50 1.75 0.50 4.30 4.70 31
2x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.50 5.40 5.80 48
2x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.80 6.40 6.80 65
2x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.75 0.90 7.00 7.50 83
3x 0.50 16/0.21 1.00 37.10/38.20 0.50 2.10 0.60 5.80 6.20 53
3x 0.75 24/0.21 1.20 24.70/25.40 0.60 2.30 0.60 5.70 6.30 60
3x 1.00 32/0.21 1.35 18.50/19.10 0.60 2.50 0.90 6.90 7.50 81
3x 1.50 30/0.26 1.70 12.70/13.00 0.60 2.65 0.70 6.90 7.50 98

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
