FLYZ

Applications

This PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required.

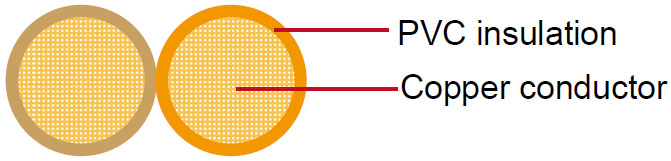

Construction

FLYZ
Conductor Cu-ETP1 bare according to DIN EN13602
Insulation Plasticized (PVC)
Standard Compliance ISO 6722

Technical Parameters

Operating temperature: –25 °C to +90 °C

Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Diameter of Core Diameter Width Diameter Height Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm kg/km
2 x0.50 16/0.21 1.00 37.10 0.50 2.10 4.40±0.20 2.10±0.15 20
2 x0.75 24/0.21 1.20 24.70 0.60 2.35 4.70±0.30 2.35±0.15 23
2 x1.00 32/0.20 1.50 19.50 0.60 2.55 5.10±0.30 2.60±0.15 32
2 x1.50 48/0.26 1.70 12.70 0.60 2.80 5.60±0.30 2.80±0.15 39

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
