GXL

Applications

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

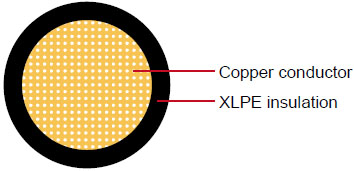

Construction

GXL
Conductor Soft-annealed copper according to ASTM B3
Insulation Polyethylene crosslinked (XLPE)
Standard Compliance SAE J1128

Technical Parameters

Operating temperature: –40 °C to +125 °C

Conductor Insulation Cable
Size Nominal Cross-section No. and Dia. of Wires Diameter max. Thickness Wall min. Thickness Wall nom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm mm kg/km
20 1 x 0.50 19/0.20 0.97 0.41 0.58 2.40 9
18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12
18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12
16 1 x 1.00 19/0.24 1.45 0.41 0.58 2.90 17
14 1 x 2.00 19/0.36 1.80 0.41 0.58 3.20 25
12 1 x 3.00 19/0.45 2.29 0.46 0.66 3.80 38
10 1 x 5.00 19/0.57 2.87 0.56 0.79 4.70 58

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
