HDT

Applications

This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

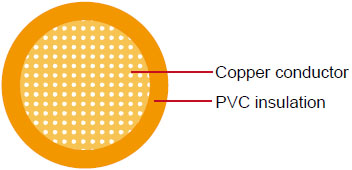

Construction

HDT
Conductor Soft-annealed copper according to ASTM B3
Insulation PVC
Standard Compliance SAE J1128

Technical Parameters

Operating temperature: –40 °C to +85 °C

Conductor Insulation Cable
Size Nominal Cross-section No. and Dia. of Wires Diameter max. Thickness Wallnom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm kg/km
20 1 x 0.50 7/0.32 1.00 0.91 2.80 13
18 1 x 0.80 19/0.23 1.50 0.94 3.00 7
16 1 x 1.00 19/0.29 1.50 1.02 3.50 22
14 1 x 2.00 19/0.36 1.80 1.04 3.90 31
12 1 x 3.00 19/0.45 2.30 1.17 4.60 16
10 1 x 5.00 19/0.26 3.00 1.17 5.30 67
8 1 x 8.00 19/0.45 3.70 1.40 6.50 104

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
