SXL

Applications

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.

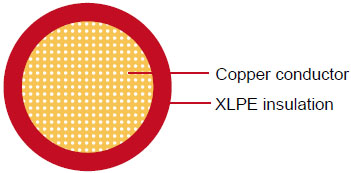

Construction

SXL
Conductor Soft-annealed copper according to ASTM B3
Insulation Polyethylene crosslinked (XLPE)
Standard Compliance SAE J1128

Technical Parameters

Operating temperature: –40 °C to +125 °C

Conductor Insulation Cable
Size Nominal Cross-section No. and Dia. of Wires Diameter max. Thickness Wall min. Thickness Wall nom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm mm kg/km
20 1 x 0.50 7/0.32 0.97 0.52 0.74 2.80 11
18 1 x 0.80 19/0.23 1.17 0.53 0.76 3.00 15
16 1 x 1.00 19/0.28 1.45 0.57 0.81 3.40 20
14 1 x 2.00 19/0.36 1.80 0.62 0.89 3.90 29
12 1 x 3.00 19/0.45 2.29 0.66 0.94 4.60 43
10 1 x 5.00 19/0.57 2.87 0.73 1.04 5.30 64

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
