Multipair Overall Screened Cables - Belden Equivalent 9684

Applications

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are used as low capacitance computer cables for EIA RS-232/422 applications.

Construction

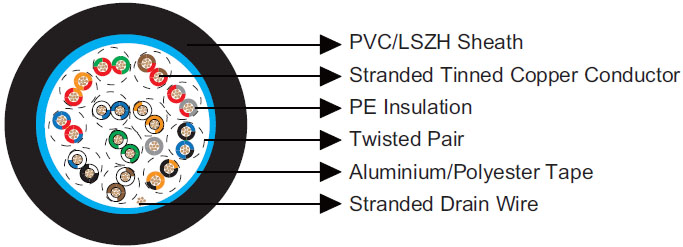

Belden Equivalent 9684
Conductor Tinned copper wire.
Insulation PE.
Overall Screen Aluminium/Polyester tape.
Drain Wire Tinned copper wire.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Gray (single conductor).

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2919
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 51
Nominal Capacitance Conductor to Screen pF/m 90
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119684V 12 0.25 0.89 10.6
BE119684H 12 0.25 0.89 10.6
