ProfiNet Type A Radiation Resistant & Armored

Applications

Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

Construction

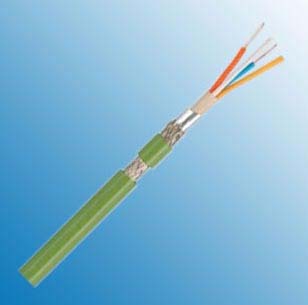

  ProfiNet Type A Radiation Resistant & Armored
Type/Area of Application Ray loaded areas Fixed Installation, Outdoor
Cable Construction 2x2x0.64 mm 2x2x0.64 mm
Inner Conductor Diameter Copper, bare (AWG 22/1) Copper, bare (AWG 22/1)
Conductor Insulation XLPE ray cross-linking PE
Conductor Colors white, yellow, blue, orange white, yellow, blue, orange
Stranding Element Star quad Star quad
Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
Shielding Polyester foil, aluminum-lined Polyester foil, aluminum-lined
Total Shielding Cu braid, tinned Cu braid, tinned
Armoring - Steel Rib
Inner Jacket Material TPR cross-linking PVC
Outer Jacket Material PUR PE
Outer Diameter 6.5 mm ± 0.2 mm 9.3 mm ± 0.5 mm
Outer Jacket Color Green Black

Electrical Data

Characteristic Impedance@1-100 MHz 100 Ω ± 15 Ω
Conductor Resistance 62.0 Ohm/km max.
Insulation Resistance 0.50 GOhm x km min.
Mutual Capacitance 50.0 nF/km nom.
Working Voltage 300V
Test Voltage 1.5 KV
  10 MHz 5.2 dB/100m
Attenuation 16 MHz 6.9 dB/100m
  62.5 MHz 16.0 dB/100m
  100 MHz 19.5 dB/100m

Technical Data

Weight approximately 63.0 kg/km approximately 124.0 kg/km
Min. Bending Radius (Laying) 46.0 mm 93.0 mm
Operating Temp. Range, min. -40 °C -40 °C
Operating Temp.Range, max. +80 °C +70 °C
