Profibus ET200X + ECOFAST

Applications

The Profibus-ET200X and Profibus ECOFAST lines used in the area of process automation. These BUS systems are a very economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The series hybrid are characterized by a special construction with data and power supply in one cable. These types are suited for the application in drag chains and similar mobile applications.

Construction

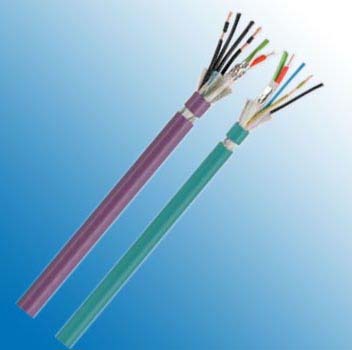

  Profibus ET200X + ECOFAST
Type/Area of Application Drag Chain Applications Mobile Use
Cable Construction 1x2x0.65 mm + 3x1x0.75 mm2 (stranded) 1x2x0.65 mm + 4x1x1.5 mm2(stranded)
Inner Conductor Diameter 1 Copper, bare (AWG 22/19) Copper, bare (AWG 24/19)
Inner Conductor Diameter 2 Copper, bare (AWG 18/24) Copper, bare (AWG 18/84)
Conductor Insulation 1 Foam-skin-PE Foam-skin-PE
Conductor Insulation 2 PVC TPM
Conductor Colors 1 red, green red, green
Conductor Colors 2 black, blue, green-yellow back, back, back, back
Stranding Element Double Conductor 2 conductors + 2 fillers stranded together
Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
Shielding Foil + Braid Foil + Braid
Overall wrapping Polyester foil -
Outer Jacket Material PUR TPU
Outer Diameter 9.5 mm ± 0.5 mm 11.0 mm ± 0.3 mm
Outer Jacket Color Green Violet

Electrical Data

Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω 150 Ω ± 10 Ω
Conductor Resistance 84.0 Ohm/km max. 89.9 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min. 1.00 GOhm x km min.
Mutual Capacitance@1KHz 30.0 nF/km nom. 30.0 nF/km nom.
Working Voltage Max: 250 V
Test Voltage 1.5 kV 1.5 kV
Attenuation 9.6 kHz < 3.0 dB/km 9.6 kHz < 3.0 dB/km
  38.4 kHz < 5.0 dB/km 38.4 kHz < 5.0 dB/km
  4.0 MHz < 25.0 dB/km 4.0 MHz < 30.0 dB/km
  16.0 MHz < 52.0 dB/km 16.0 MHz < 60.0 dB/km

Technical Data

Weight approximately 105.0kg/km approximately 159.0kg/km
Min. Bending Radius (Laying) 14 x OD mm 15 x OD mm
Operating Temp.Range, min. - 5 °C -20 °C
Operating Temp.Range, max. +60 °C +60 °C
