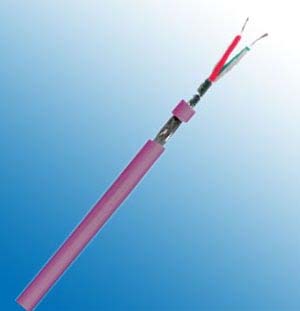

Profibus L2 Drag Chain (Track)

Applications

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The above mentioned types are suitable for drag chains (stranded).

Construction

  Profibus L2 Drag Chain (Track)
Type/Area of Application Drag Chain Applications
Cable Construction 1x2x0.64 mm (stranded)
Inner Conductor Diameter Copper, bare (AWG 24/19)
Conductor Insulation Foam-skin-PE
Conductor Colors Red, green
Stranding Element 2 conductors + 2 fillers stranded together
Shielding Polyester foil, aluminum-lined
Total Shielding Cu braid, tinned
Outer Jacket Material PUR
Outer Diameter 8.0 mm ± 0.4 mm
Outer Jacket Color Violet

Electrical Data

Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω
Conductor Resistance 82.0 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min.
Mutual Capacitance@1 KHz 30.0 nF/km nom.
Working Voltage Max: 250V
Test Voltage 1.5 KV
Attenuation 9.6 kHz < 3.0 dB/km
  38.4 kHz < 5.0 dB/km
  4.0 MHz < 25.0 dB/km
  16.0 MHz < 52.0 dB/km

Technical Data

Weight approximately 65.0 kg/km
Min. Bending Radius for Laying 7.5 x OD mm
Operating Temperature Range, min. -40°C
Operating Temperature Range, max. +70°C
