LCX32(1-1/4″) L

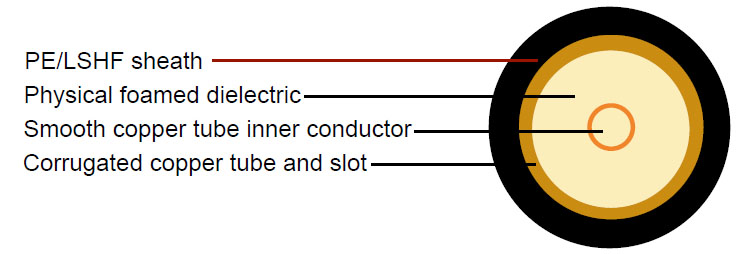

Construction :

  • Inner conductor Smooth copper tube Φ13.0 mm
    Dielectric Foam PE Φ33.0 mm
    Outer conductor Corrugated copper tube and slot Φ36.0 mm
    Sheath PE/LSOH Φ38.6 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 89%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 0.7 Ohm/Km
    Outer conductor resistance 0.7 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 1050kg/km/1150kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 0.8 0.24
    150 1.1 0.34
    450 2.5 0.76
    800 3.3 1.01
    900 3.5 1.07
    1800 5.0 1.52
    2200 5.9 1.80
    2400 6.5 1.98
>
