RF32(1-1/4″)

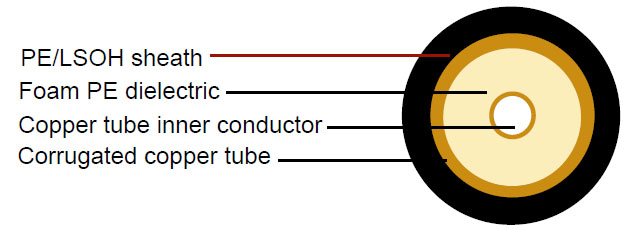

Construction :

  • Inner conductor Copper tube Φ13.1 mm
    Dielectric Foam PE Φ32.8 mm
    Outer conductor Corrugated copper Φ36.0 mm
    Sheath PE/LSOH Φ38.6 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 0.76 Ohm/Km
    Outer conductor resistance 0.60 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Test voltage 9 KV
    Cable weight (approx.) 940 kg/km
    Operating Frequency Band 1 – 3300 MHz
    Screening effectiveness >120dB

Attenuation :

  • Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    10 0.24 0.08 1250 3.19 1.06
    100 0.79 0.26 1500 3.55 1.18
    150 0.98 0.33 1700 3.83 1.28
    200 1.15 0.38 1800 3.96 1.32
    300 1.43 0.48 2000 4.22 1.41
    450 1.78 0.59 2100 4.34 1.45
    500 1.89 0.63 2200 4.47 1.49
    700 2.29 0.76 2300 4.59 1.53
    800 2.47 0.82 2500 4.83 1.61
    900 2.63 0.88 2700 5.06 1.69
    1000 2.80 0.93 3000 5.40 1.80

Return Loss :

  • 806-960 MHz 24.29dB
    1700-2000 MHz 24.29dB
>
