RG 11 AL

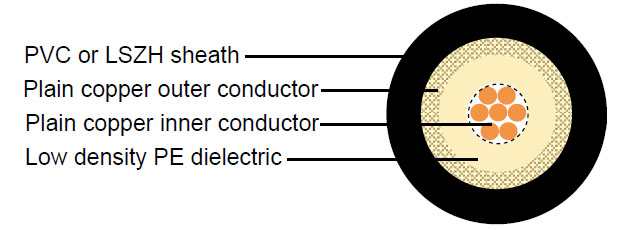

Construction :

  • Inner conductor Plain copper 7 x 0.40 mm
    Dielectric Low density PE Φ7.25 ± 0.18 mm
    Outer conductor (shield) Plain copper 112 x 0.15 mm
    Shield coverage   64%
    Sheath PVC or LSZH Φ10.3 ± 0.18 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 20.5 Ohm/Km
    Outer conductor resistance 10 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 27.8 Kg/Km
    Cable weight (approx.) 118.2 Kg/Km
    Screening effectiveness >45 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 4.4 1.34
    100 6.4 1.95
    200 9.7 2.96
    400 14.3 4.36
    500 16.1 4.91
    600 17.9 5.46
    860 22.0 6.71
    1000 24.4 7.44

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >27dB
    600-900 MHz >25dB
>
