M17/119-RG 174 (RG 174 A/U)

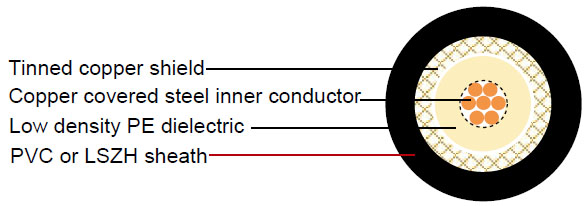

Construction :

  • Inner conductor Copper clad steel(CCS) 7 x 0.16 mm
    Dielectric Low density PE Φ1.50 ± 0.08 mm
    Outer conductor (shield) Tinned copper 64 x 0.10 mm
    Shield coverage   88%
    Sheath PVC or LSZH Φ2.80 ± 0.13 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 290 Ohm/Km
    Outer conductor resistance 39.0 Ohm/Km
    Test/Operatig Voltage(max) 4.5 KV/1.6 KV
    Operating temperature range -30 °C - +70 °C
    Copper Weight 5.9 Kg/Km
    Cable weight (approx.) 12.5 Kg/Km
    Screening effectiveness 100-900 MHz >50dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 17.5 5.34
    100 25.8 7.87
    200 38.2 11.65
    400 54.9 16.74
    500 63.1 19.24
    600 68.6 20.91
    860 81.2 24.76
    1000 87.5 26.68

Return Loss :

  • 30-300 MHz >26dB
    300-600 MHz >23dB
    600-900 MHz >20dB
>
