RG 213 TY

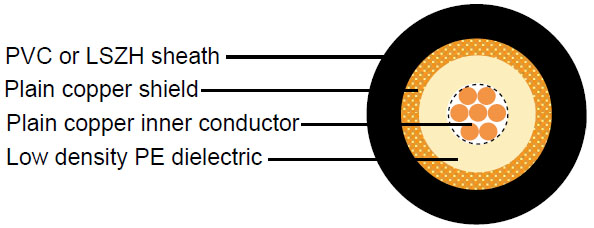

Construction :

  • Inner conductor Plain copper 7 x 0.75 mm
    Dielectric Low density PE Φ7.25 ± 0.08 mm
    Outer conductor (shield) Plain copper 240 x 0.13 mm
    Shield coverage   93%
    Sheath PVC or LSZH Φ10.3 ± 0.18 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 6.0 Ohm/Km
    Outer conductor resistance 5.0 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 59.9 Kg/Km
    Cable weight (approx.) 149.7 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 4.5 1.37
    100 6.8 2.07
    200 10.0 3.05
    400 14.5 4.42
    500 16.4 5.00
    600 18.1 5.52
    860 22.5 6.86
    1000 24.7 7.53

Return Loss :

  • 30-300 MHz >31dB
    300-600 MHz >28dB
    600-900 MHz >27dB
>
